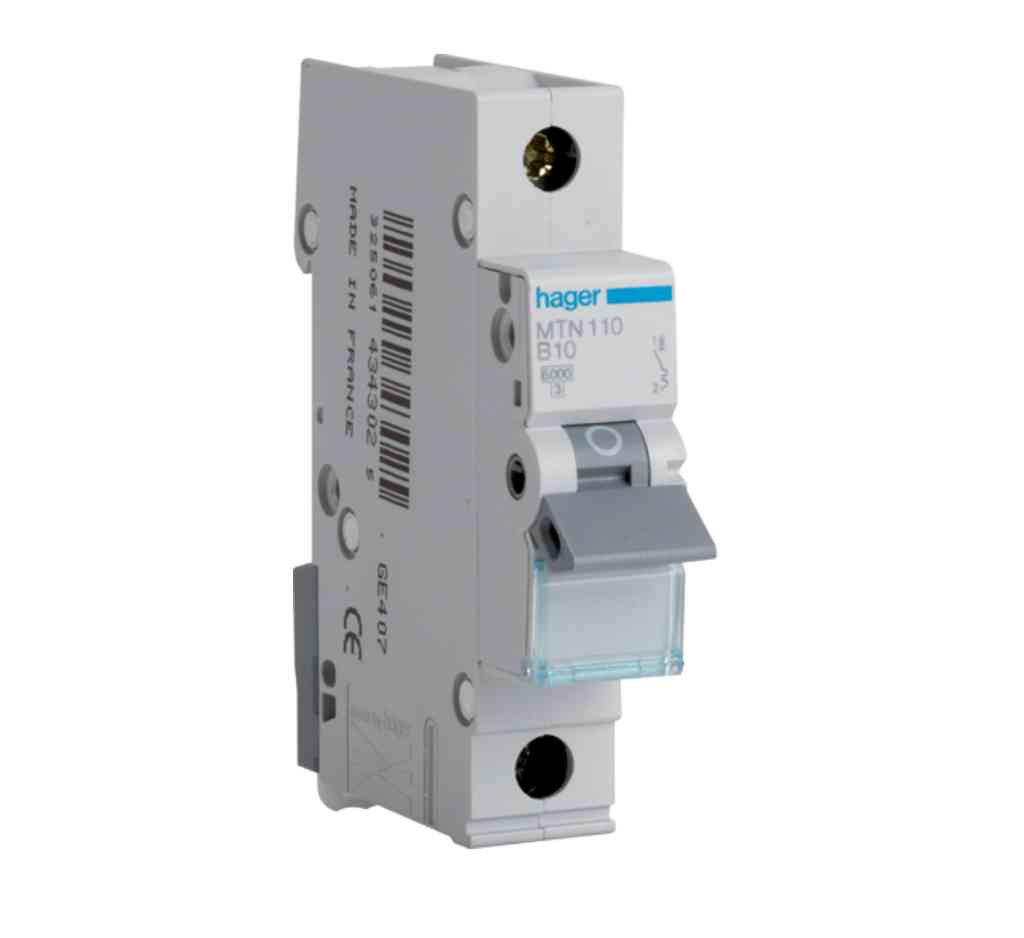

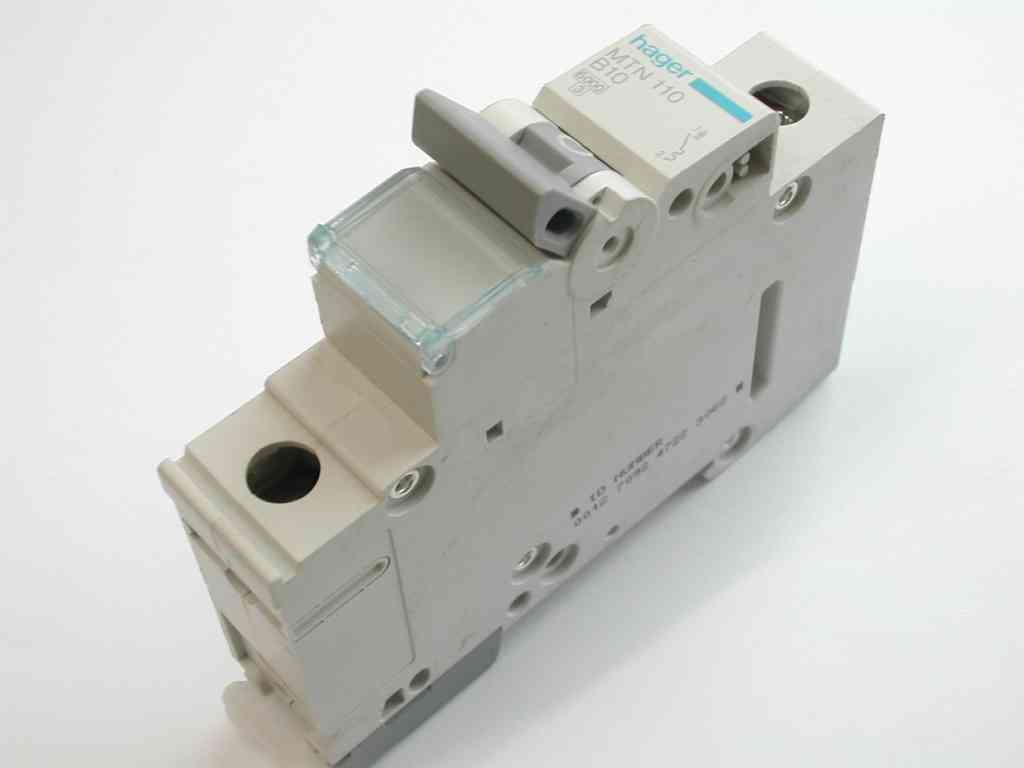

Hager 10A MCB MTN110 Type B

Type B 10 Amp / 10A Hager MTN110 MCB (miniature circuit breaker).

Hager MTN Miniature Circuit Breakers MCBs detect over currents due to both overload and fault currents. The MTN range are Type B breakers, this means they will trip between 3 and 5 time full load current which is suitable for most domestic installations. The MCB will operate and interrupt the supply to prevent damage to the installation.

DIN rail mounted, the Hager MTN domestic MCBs have a short circuit breaking capacity of 6kA. The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.

The MCBs have a positive indication for on or off.

Features :

• Single pole.
• Connection capacity : Rigid conductor 25mm² : Flexible conductor 16mm² .
• Suitable for the Hager range of domestic consumer units.
• Breaking capacity 6kA.
• Rated Voltage : 230 / 400 Volts.
• Reference calibration temperature : 30°C.
